Frequently Asked Questions

Load transfer in T-headed bars occurs through:

• Bearing of the head against the concrete
• An additional contribution from bond along the bar, depending on the design

These mechanisms provide stiff anchorage with reduced slip compared with hooked bars.

Yes. T-headed bars can:

• Improve anchorage reliability
• Reduce slip under cyclic loading
• Enhance structural performance in seismic zones

They are widely used in critical infrastructure and nuclear projects.

Look for declared performance that includes seismic applications, such as category S in accordance with ISO 15698 and EAD 160012.

For HRC Europe products: HRC100 and HRC200 Series T-headed bars are certified for seismic category S. For details,https://hrc-europe.com/about-hrc/certifications/?utm_source=chatgpt.com see our certifications page or contact HRC Europe directly.

Yes. T-headed bars can provide anchorage under fatigue loading. The actual fatigue performance depends on the product and is provided by the manufacturer.

HRC Europe: HRC100 and HRC200 series headed bars are certified for fatigue category F1. The HRC200 series has improved fatigue performance. For details, see our certifications page or contact HRC Europe directly.

For HRC Europe products:

A calculation may show that the concrete compressive stress immediately beneath the T-head plate exceeds the design concrete compressive strength. Nevertheless, the T-head anchorage is possible in practice because of the three-dimensional stress state beneath the T-head. The T-head plate is pressed against the concrete beneath it, while the surrounding concrete prevents transverse expansion. One effect of this prevented lateral expansion, known as confinement, is an increase in the concrete compressive strength. The concrete beneath a T-head is therefore in a confined state and can withstand higher compressive stresses.

The HRC100 and HRC200 Series have been tested and certified in accordance with ISO 15698, the ISO standard for T-head reinforcement. The tests involve tensile tests of T-headed bars embedded in concrete to document their anchoring performance. HRC100 and HRC200 meet the requirements of category B3. This means that the actual tensile strength of the reinforcement can be developed without any contribution from bond and without crushing the concrete beneath the T-head. This applies to concrete of at least strength class C30/37 and is referenced in the European Technical Assessment (ETA-08/0035), which forms the basis for the CE marking.

The revised European design standard EN 1992-1-1:2023 states: “A tensile stress in the reinforcement steel bar σsd = 435 MPa may be considered to be developed without additional anchorage length for heads ø_h ≥ 3ø with f_ck ≥ 25 MPa, ø ≤ 25mm …” The standard has been published and will become the applicable design code after a transition period.

For HRC Europe products:

There is no simple rule for determining the required spacing between T-heads. Two aspects should be considered:

1. Load transfer: T-heads transfer the tensile load from the bar into the concrete beneath the head. When T-heads are placed very close together, the loaded concrete prisms overlap. However, the T-head confines the concrete, increasing its compressive capacity. In most cases, transverse or surrounding rebar is in place, which contributes to the confinement effect and takes up transverse tension.
2. Casting conditions: If several T-heads are placed directly next to one another, they can act as a larger plate and potentially cause delamination of the concrete cover. HRC Europe’s circular T-heads (HRC150) allow concrete to flow more easily between the plates. Staggering the T-heads is a simple and effective way to ensure good concrete flow, and no large offset is required.

Note: EN 1992-1-1:2023 contains equations for calculating the anchorage capacity of headed bars, taking into account the spacing between the heads and their transverse distance from the concrete surface.

Yes. Stainless steel T-headed bars are available from some manufacturers.

HRC Europe: HRC150S T-headed bars are produced in stainless steel. The T-head plate is made of duplex stainless steel grade 1.4462. The attached rebar can be made of either carbon steel or duplex stainless steel (typically grade 1.4362). HRC150S is covered by ETA-08/0035 and bears the CE marking.

Performance requirements are typically defined in structural design codes, product standards, and national or project specifications. A common requirement for mechanical splices is to achieve a higher tensile strength than that specified for the connected bars, often exceeding the yield strength of the reinforcing steel (typically 130% × R_eH,spec or R_m,spec). The main reason for requiring this elevated performance is that couplers shall transfer a minimum of the actual rebar ductility. Otherwise, the coupler will represent a weak link in accidental load situations, interrupting the continuity of the rebar.

Apart from strength requirements, rebar couplers must also fulfil requirements for slip, as well as optional requirements for fatigue and seismic performance.

HRC400 series rebar couplers have an ultimate tensile capacity of over 700 MPa, exceeding the actual tensile strength of most rebar heats. In addition, the HRC400 coupler system is tested and certified for fatigue and seismic performance, with declared performance for both.

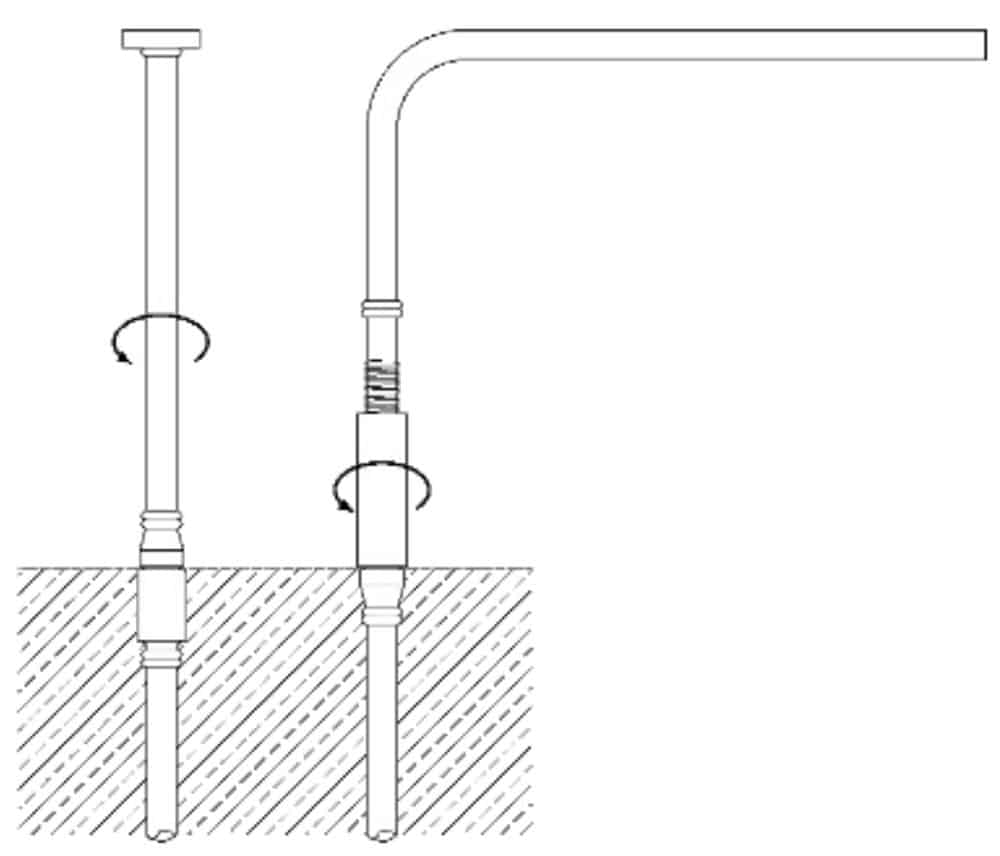

In principle, yes. Rebar couplers are widely used as an alternative to lap splicing, particularly where safety concerns, space limitations, large bar diameters, or design constraints make lap splices impractical.

Placement is important. Engineers generally try to avoid high-stress regions, such as beam-column joints, and instead position rebar couplers where stresses are lower. However, this is not always possible, for example at geometrically determined casting joints. In such cases, adequate coupler performance is critical.

High-quality couplers designed to withstand cyclic elastic-plastic loading perform well under load programs that simulate seismic conditions. Performance under seismic loading is a specific classification category in some product standards and certification schemes. Look for the declared product performance and check the details in the referenced technical specification (standard or scheme).

HRC400 is tested and certified for seismic performance both according to ISO 15835, category S, and based on EAD 160129-00-0301 and ETA-22/0573, with declared performance.

Rebar couplers can be tested for fatigue performance according to the requirements specified in several product standards and certification schemes. Many products perform well, with the individual results provided in the product documentation.

HRC400 series rebar couplers have fatigue performance that exceeds the fundamental requirements of both product standards (e.g. ISO 15835) and design codes (such as Eurocode 2). The performance is declared with an S/N curve. For details, see ETA-22/0573.
